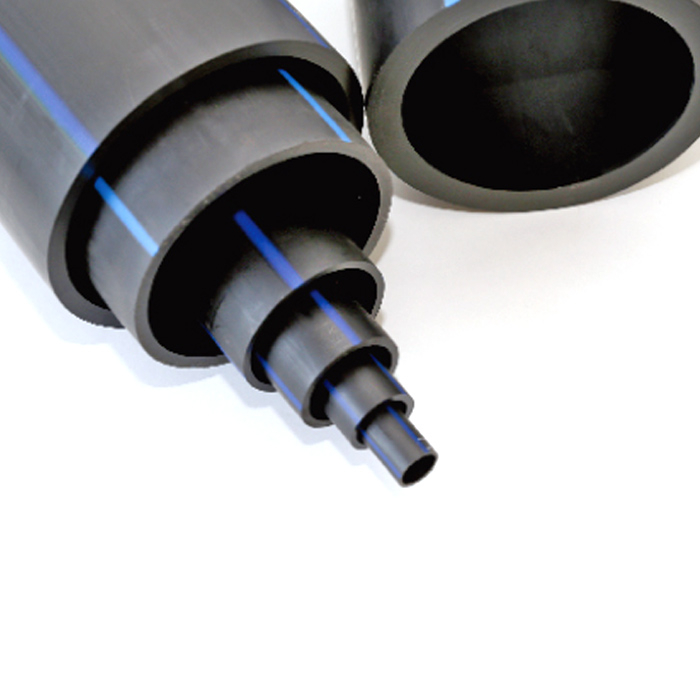

Polyethylene(PE) Pipe for Water Supply

Polyethylene (PE) pipe is a pipe made mainly of polyethylene resin and extruded into shape. Our company uses high-quality polyethylene pipe special materials (PE80, PE100) to develop and produce two series of high-quality polyethylene (PE) pipes for water supply and gas use. They have the characteristics of light weight, fast construction, long service life, hygiene and safety, and are excellent green and environmentally friendly pipes.
Availability:
Quantity:
  • SHUANGTENG

Characteristic

Corrosion Resistance: Polyethylene is an inert material that can withstand corrosion from various chemical media, No electrochemical corrosion, no need for anti-corrosion protective layer.

High Tenacity: PE water supply pipe is a high-tenacity pipe with a general elongation at break exceeding 500%. It has strong adaptability to uneven settlement of the pipe foundation and is a pipe with excellent seismic performance.

 Safe and Non-toxic: PE pipes are light in weight, with simple welding technology, convenient construction, and low overall project cost.

Simple Construction: PE water supply pipes contain no heavy metal additives, do not incrustate, and do not breed bacteria.

Good Sealed: PE water supply pipes mainly adopt fusion connection (hot-melt connection or electro-fusion connection) and socket connection. Compared with rubber joint or other mechanical joints, there is no risk of leakage caused by joint distortion.

Long Service Life



Dimensions

The PE water supply pipes produced by our company are divided into two series based on the raw materials used: PE80 and PE100. The PE100 series can be divided into SDR11, SDR13.6, SDR17, SDR21

SDR26 has five levels; The PE80 series is divided into five levels: SDR11, SDR13.6, SDR17, SDR21, and SDR33.



Technical Parameters Of Water-supply Pipe
No. Testing Items Hoop Stress Requirement
PE80 PE100
1 Hydrostatic Strength at 20℃ (100h) 10.0 12.0 No rupture, no leakage
2 Hydrostatic Strength at 80℃ (165h) 4.5 5.4 No rupture, no leakage
3 Hydrostatic Strength at 80℃ (1000h) 4.0 5.0 No rupture, no leakage


No. Testing Items Requirement
1 Elongation at Break ≥ 350%
2 Longitudinal Reversion Rate (110℃) ≤ 3%
3 Oxidation Induction Time (210℃) ≥ 20 min



Erection Joint

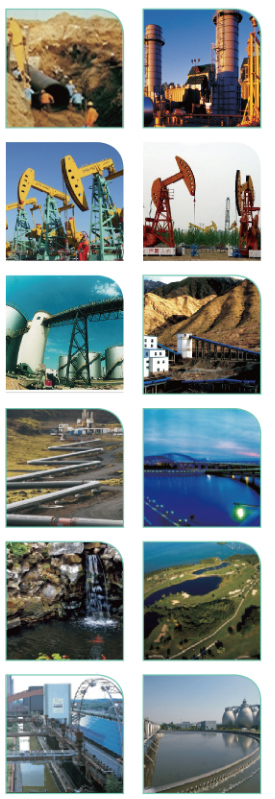

Municipal engineering: water supply for buildings, drinking water, fire-fighting water, heat supply network backwater, coal gas, underground drainage pipes and sewage lines;

Road engineering: seepage pipes and drainage pipes of railway and expressway, green belt irrigation pipe, cable conducting pipe;

Chemical industry: acid, alkali and salt manufacturing industries, process and discharge pipe for delivering corrosive gas, liquid and solid powder in such industries as oil, chemical industry, chemical fertilizer, pharmacy, textile, printing and dyeing, and rubbers and plastics;

non-ferrous metal smelting, pulp, tailings, ventilation duct and process pipe; the ventilating pipes, blast pipes, drainage pipes and mud pipes of the mine.

Oil field and gas field: oily sewage, gas field sewage, oil gas mixture, secondary and tertiary oil recovery and gathering & transferring process pipe;

Seawater delivery: desalination plant, seawater delivery of seaports, river dredging

Seawater delivery: desalination plant, seawater delivery of seaports, river dredging

Communication pipe: the communication on railways and roads, communication cables and cable protection pipes.

Port and wharf: the drainage pipes and sewage lines of large airport port and wharf;

Sports places: the seepage pipes and drainage pipes of sports places such as golf courses and football fields;

Water storage system: the storage system that intercepts lagging water;

Hydraulic engineering: the usage of water-head pipes, irrigation pipes and the water pipelines and drainage pipes of hydropower stations.

Constructive engineering: storm sewers, sub-drains, sewage lines and ventilating pipes of a building, the sewage lines of landfills;
