Electrofusion Fitting

PE fitting with one or two sockets with heating elements integrated in the inner wall, or with a socket end, which can convert electric energy
into heat energy and weld with pipe or fitting. Its series is SDR9 / 11 / 17; The maximum working pressure is 2.0MPa for water supply supply.

The steeI plate is punched and welded into a tubular reinforced skeleton or polyethylene composite short pipe, which is combined with
polyethylene injection molding fittings, The maximum working pressure s 4.0MPa for water supply supply.

GB/T32439-2015、GB/T13663.3-2018、QB/T5538-2020

Availability:

Quantity:



Inquire Add to Basket

Brand:
SHUANGTENG

Product Description

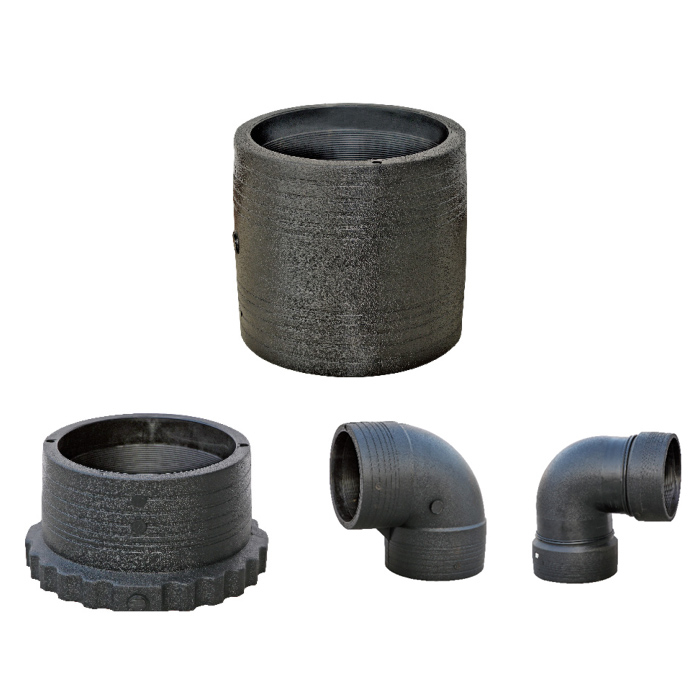

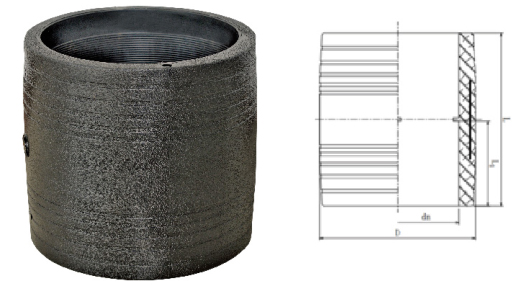

Electrofusion straight . Electrofusion straight with steel skeleton

Nominal Diameter / dn	Fitting Outer Diameter / D	Total Length of Fitting / L	Socket Depth / L₁	Fusion Zone Length
50	65	95	46	20
63	80	110	53.5	25
75	95	120	58.5	27
90	110	135	66	33
110	140	155	76	39
140	170	170	83.5	40
160	200	195	95.5	50
200	240	220	107.5	60
225	270	230	112.5	58
250	296	240	117.5	65
315	367	265	130	76
355	402	269	131	73
400	454	296	144.5	83
450	510	324	158.5	94
500	567	354	173.5	95
560	634	388	190	110
630	714	423	208	118

Electrofusion straight . Electrofusion straight with steel skeleton

Nominal Diameter / dn	Fitting Outer Diameter / D	Fitting Outer Diameter / D₁	Total Length of Fitting / L	Socket Depth / L₁
50	65	90	115	110
63	80	105	120	114.98
75	95	125	130	125
90	110	140	135	130
110	140	160	130	125
140	170	200	140	132
160	190	215	140	134
200	240	280	150	140
225	270	315	150	140
250	296	330	150	140
315	355	405	160	150
355	402	446	150	144
400	448	501	165	159
450	510	551	181	174
500	561	606	197	190
630	680	730	237	229

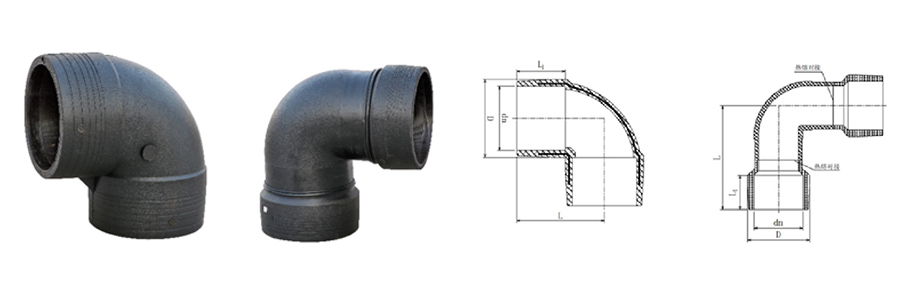

90° electrofusion elbow、90° electrofusion elbow with steel skeleton 90° electrofusion elbow of butt fusion.

Nominal Diameter / dn	Fitting Outer Diameter / D	Total Length of Fitting / L	Socket Depth / L₁
50	65	80	47.5
63	80	95	55
75	95	107	60
90	110	123	68
110	140	147.5	77.5
140	170	170	85
160	200	197	97.5
200	240	230	110
225	270	250	115
250	296	268	120
315	367	316	132.5
*355	402	/	131.5
*400	454	/	144.5
*450	510	/	158.5
*500	567	/	173.5
*630	714	/	208

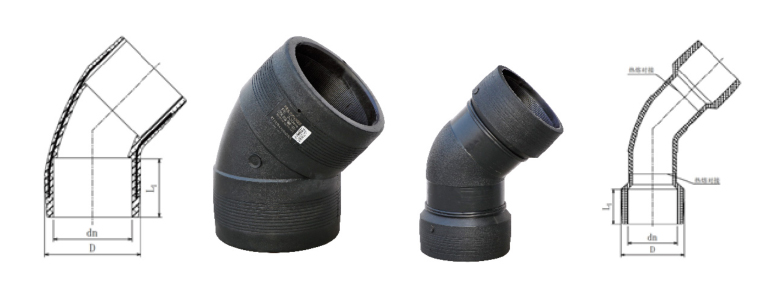

45° electrofusion elbow、 45° electrofusion elbow with steel skeleton 45° electrofusion elbow of butt fusion.

Nominal Diameter / dn	Fitting Outer Diameter / D	Socket Depth / L₁
50	65	45
63	80	50
75	95	55
90	110	60
*110	140	77.5
*140	170	85
*160	200	97.5
*200	240	110
*225	270	115
*250	296	120
*315	367	132.5
*355	402	131.5
*400	454	144.5
*450	510	158.5
*500	567	173.5
*630	714	208

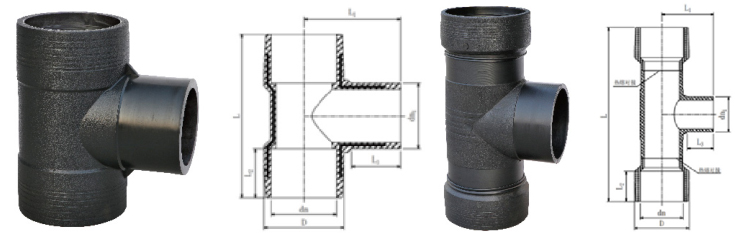

Electrofusion equal diameter tee、 Electrofusion equal diameter tee with steel skeleton. Electrofusion equal diameter tee of butt fusion,

Nominal Diameter / dn	Fitting Outer Diameter / D	Total Length of Fitting / L	Total End Length / L₁	Socket Depth / L₂	Barrel Length / L₃
505050	65	145	86	47.5	47.5
636363	80	173	101	55	55
757575	95	195	113	60	59.5
909090	110	225	132.5	67.5	67.5
110110110	140	265	182.5	77.5	102.5
140140140	170	310	205	85	110
160160160	200	355	222.5	97.5	112.5
200200200	240	420	266.8	110	135
225225225	270	455	289	115	270
250250250	296	490	307	120	145
315315315	367	580	357	132.5	157.5
355355*355	402	934.7	343	131.5	136
400400*400	454	1059.2	363	144.5	150
450450*450	510	1186.8	409	158.5	164
500500*500	567	1276.1	455	173.5	180
630630*630	714	1544.8	553	208	213

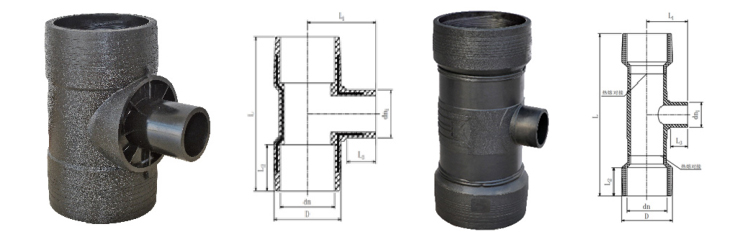

Electrofusion equal diameter tee、 Electrofusion equal diameter tee with steel skeleton. Electrofusion equal diameter tee of butt fusion,

No.	Nominal Diameter / dn	Fitting Outer Diameter / D	Total Length of Fitting / L	Total End Length / L₁	Socket Depth / L₂	Barrel Length / L₃
1	63×50×63	80	173	93	55	50
2	75×50×75	95	195	100.5	60	50
3	75×63×75	95	195	108	60	57.5
4	90×63×90	110	225	117.5	67.5	57.5
5	90×75×90	110	225	122.5	67.5	62.5
6	*110×50×110	140	437.4	132	77.5	70
7	*110×63×110	140	447.4	132	77.5	70
8	110×75×110	140	265	137.5	77.5	62.5
9	110×90×110	140	265	141	77.5	70
10	*140×63×140	170	562.4	160	85	70
11	*140×75×140	170	562.4	160	85	70
12	140×90×140	170	310	160	85	70
13	140×110×140	170	310	170	85	80
14	*160×50×160	200	556.5	175	97.5	70
15	*160×63×160	200	556.5	175	97.5	75
16	*160×75×160	200	556.5	175	97.5	75
17	160×90×160	200	355	175	97.5	70
18	160×110×160	200	355	185	97.5	102.5
19	*200×63×200	240	641.5	185	110	75
20	*200×75×200	240	641.5	185	110	80
21	*200×90×200	240	641.56	185	110	82
22	200×110×200	240	420	227.5	110	102.5
23	200×160×200	240	420	247.5	110	122.5
24	*225×63×225	270	699.64	230	115	80
25	*225×75×225	270	699.64	230	115	85
26	*225×90×225	270	699.64	230	115	90
27	*225×110×225	270	699.64	230	115	100
28	*225×200×225	270	819.64	240	115	110
29	225×160×225	270	455	264.5	115	122.5
30	*250×63×250	296	705.06	250	120	85
31	*250×75×250	296	705.06	250	120	92
32	*250×90×250	296	705.06	250	120	100
33	250×110×250	296	490	257.6	120	102.5
34	250×160×250	296	490	277.5	120	122.5
35	250×200×250	296	490	290	120	135
36	*315×63×315	367	746.54	285	132.5	90
37	*315×75×315	367	746.54	285	132.5	90
38	*315×90×315	367	746.54	285	132.5	110
39	315×110×315	367	580	294	132.5	102.5
40	315×160×315	367	580	314	132.5	122.5
41	315×200×315	367	580	326.5	132.5	135
42	315×250×315	367	580	336.5	132.5	145
43	*355×110×355	402	779.76	302	131.5	110
44	*355×160×355	402	779.76	302	131.5	110
45	*355×200×355	402	779.76	302	131.5	110
46	*355×250×355	402	934.76	315	131.5	123
47	*355×315×355	402	934.76	327	131.5	135
48	*400×110×400	454	869.24	325	144.5	112
49	*400×160×400	454	869.24	325	144.5	112
50	*400×200×400	454	869.24	325	144.5	112
51	*400×250×400	454	1059.24	336	144.5	123
52	*400×315×400	454	1059.24	348	144.5	135
53	*450×110×450	510	816.86	375	158.5	120
54	*450×160×450	510	901.86	375	158.5	120
55	*450×200×450	510	936.86	375	158.5	120
56	*450×250×450	510	986.86	375	158.5	130
57	*450×315×450	510	1041.86	380	158.5	140
58	*450×400×450	510	1106.86	395	158.5	150
59	*500×110×500	567	876.18	400	173.5	135
60	*500×160×500	567	976.18	405	173.5	135
61	*500×200×500	567	976.18	405	173.5	135
62	*500×250×500	567	1026.18	410	173.5	135
63	*500×315×500	567	1116.18	420	173.5	145
64	*500×400×500	567	1181.18	430	173.5	160
65	*630×200×630	714	1124.8	480	208	145
66	*630×250×630	714	1124.8	475	208	145
67	*630×315×630	714	1239.8	475	208	145
68	*630×400×630	714	1294.8	495	208	150
69	*630×500×630	714	1379.8	530	208	180

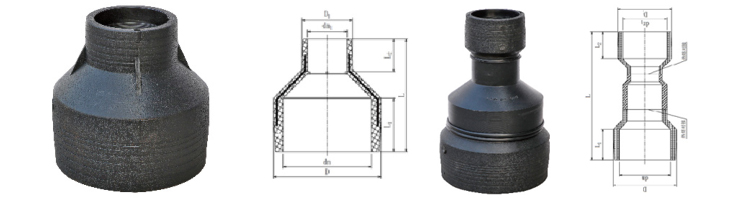

Electrofusion unequal diameter straight、 Electrofusion unequal diameter straight with steel skeleton 、 Electrofusion unequal diameter straight of butt fusion.

No.	Nominal Diameter / dn × dn1	Fitting Outer Diameter / D	Fitting Outer Diameter / D1	Total Length of Fitting / L	Socket Depth / L1	Socket Depth / L2
1	63×50	80	65	109	55	44.5
2	75×50	95	65	120	60	44.5
3	75×63	95	80	121	60	52
4	90×63	110	80	136	67.5	52
5	90×75	110	95	135	67.5	57
6	110×75	140	95	155	77.5	57
7	110×90	140	110	155	77.5	64.5
8	140×110	170	140	177.5	85	74.5
9	160×90	200	110	200	97.5	64.5
10	160×110	200	140	200	97.5	74.5
11	200×110	240	140	232.5	110	74.5
12	200×160	240	200	227.5	110	92.5
13	*225×110	270	140	499.03	115	77.5
14	*225×160	270	200	526.1	115	97.5
15	225×200	270	240	237.5	115	105
16	*250×110	296	140	516.24	120	77.5
17	*250×225	296	270	569.85	120	115
18	250×160	296	200	262.5	120	92.5
19	250×200	296	240	255	120	105
20	*315×110	367	140	537.98	132.5	77.5
21	*315×160	367	200	565.05	132.5	97.5
22	315×200	367	240	300	132.5	105
23	315×250	367	296	285	132.5	115
24	*355×200	402	240	588.16	131.5	110
25	*355×225	402	270	602.2	131.5	115
26	*355×250	402	296	602.41	131.5	120
27	*355×315	402	367	614.15	131.5	132.5
28	400×250	454	296	339.5	144.5	115
29	400×315	454	367	319.5	144.5	127.5
30	*450×200	510	240	644.21	158.5	110
31	*450×225	510	270	653.25	158.5	115
32	*450×250	510	296	653.46	158.5	120
33	*450×315	510	367	655.2	158.5	132.5
34	*450×355	510	402	655.81	158.5	131.5
35	450×400	510	454	328	158.5	139.5
36	500×400	567	454	368	173.5	139.5
37	500×450	567	510	357	173.5	153.5
38	*630×315	714	367	756.67	208	132.5
39	*630×355	714	402	757.28	208	131.5
40	630×450	714	510	456.5	208	153.5
41	630×500	714	567	446.5	208	168.5

Products7-6

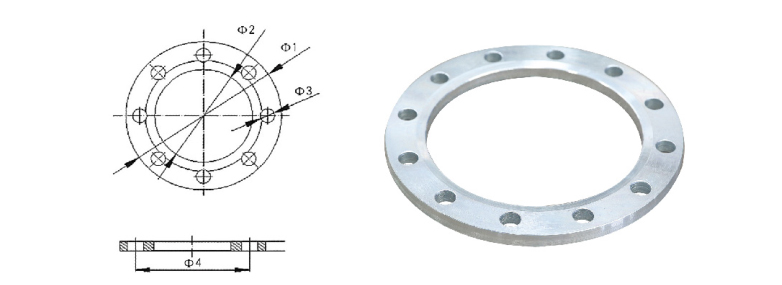

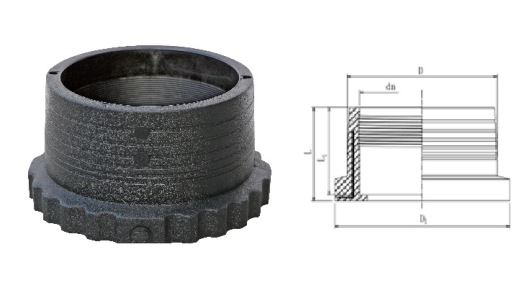

Steel Flange Disc

Parameters and Specification Unit: mm
No.	Spec	Pressure Rating / MPa	Outer Diameter / Φ1	Inner Diameter / Φ2	Bolt Hole Diameter / Φ3	Bolt Hole Center / Φ4	Number of Bolt Holes
1	dn50	1.6	145	69	18	110	4
2	dn50	2.5	145	69	18	110	4
3	dn63	1.6	160	84	18	125	4
4	dn63	2.5	160	84	18	125	4
5	dn75	1.6	180	100	18	145	8
6	dn75	2.5	180	100	18	145	8
7	dn90	1.6	195	117	18	160	8
8	dn90	2.5	195	117	18	160	8
9	dn110	1.6	215	144	18	180	8
10	dn110	2.5	235	144	22	190	8
11	dn140	1.6	245	178	18	210	8
12	dn140	2.5	270	178	26	220	8
13	dn160	1.6	280	204	22	240	8
14	dn160	2.5	300	204	26	250	8
15	dn200	1.0	335	244	22	295	8
16	dn200	1.6	335	244	22	295	12
17	dn200	2.5	360	244	26	310	12
18	dn225	1.0	365	275	22	325	8
19	dn225	1.6	365	275	22	325	12
20	dn250	1.0	390	303	22	350	12
21	dn250	1.6	400	303	26	355	12
22	dn250	2.5	425	303	30	370	12
23	dn315	1.0	445	365	22	400	12
24	dn315	1.6	460	365	26	410	12
25	dn315	2.5	485	365	30	430	16
27	dn355	1.0	505	422	22	460	16
28	dn355	1.6	520	422	26	470	16
29	dn355	2.5	555	422	33	490	16
30	dn400	1.0	565	451	26	515	16
31	dn400	1.6	580	451	30	525	16
32	dn400	2.5	620	451	36	550	16
33	dn450	1.0	615	515	26	565	20
34	dn450	1.6	640	515	30	585	20
35	dn500	1.0	670	564	26	620	20
36	dn500	1.6	710	564	33	650	20
37	dn630	1.0	780	685	30	725	20
38	dn630	1.6	835	685	36	770	20
