Metal Reinforced Polyethylene (PE) Spiral Corrugated Pipe

Metal Reinforced Polyethylene (PE) Spiral Corrugated Pipe based on the overseas advanced technique for metal and plastic
tubing compounding, is a kind of PE metal compounding wall tube, whose invert is entwining structured. The wave structure helps
to maximize the high elasticity modulus of steel to make the pipe of high ring stiffness. The PE with stable chemical property on
both internal and external layers makes the pipe corrosion resistant and abrasion-resistant, ensuring its longevity service. The low
roughness coefficient of its invert guarantees the higher carrying capacity. The fistulous and wave structure makes it light,
strongly connected and convenient for construction. It is a kind of flexible pipe, with high earth deposition resistance. Plastic, glue
and steel tightly connected with pressure and corrosion resistance,high whole performance.
As a new kind of plastic pipe, MRP, with its high ring stiffness, is finely applicable to sewer work, such as rainfall, sewage and
wastewater drain-down system. It could be described as an industrial innovation to replace the pure-plastic pipe with MRP.

Availability:

Quantity:



Inquire Add to Basket

Brand:
SHUANGTENG

Product Description

Characteristic

◉ Excellent wear resistance---low pipe friction coefficient, small resistance, rapid speed for medium, drainage and sewerage transmission

◉ High ring stiffness---could be achieved SN12.5, SN16.

◉ Light weight---only I/8 weighs of concrete pipe and 2/3 weighs of traditional winding plastic structural pipe under the same specifications, convenient transportation and construction, without large equipment.

◉ Strong pressure assistance---the pipe has the helix shape, when hit by external force, it is easy to be recovery, and not easy be broke under the stretch squeeze by adverse geological environment as earthquake and water marsh,

◉ Cold resistance---pipes won't break and leak as freeze.

◉ Aging resistance---pipe could be used for more than 50 years.

◉ Corrosion resistance---the material(PE) would not be corrosive by acid and oil

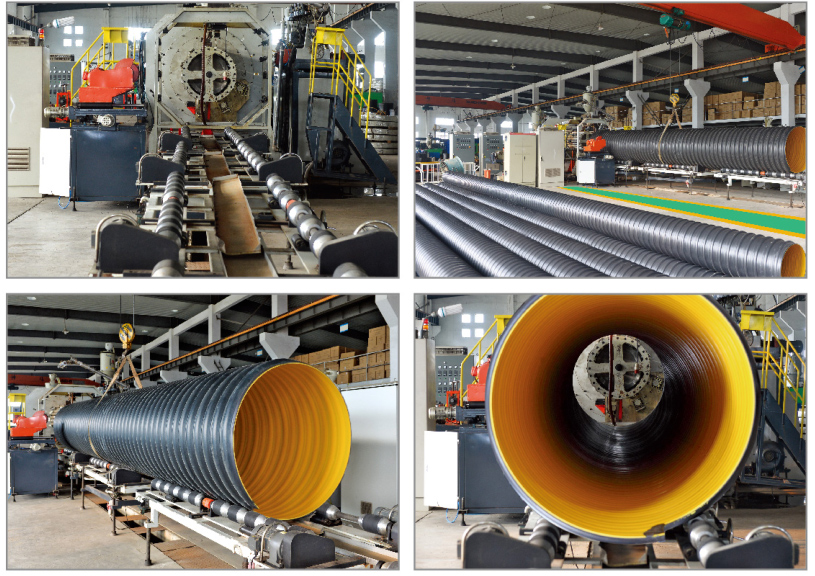

Products8-1

Physicaland Mechanical Properties

No.	Testing Items		Requirement
1	Ring Stiffness / (kN/m²)	SN8	≥ 8
2		SN10	≥ 10
3		SN12.5	≥ 12.5
4		SN16	≥ 16
5	Impact Property (TIR) / %		≤ 10
6	Peel Strength (23℃ ± 2℃) / (N/cm)		≥ 100
7	Ring Flexibility		No fracture and no gap
8	Oven Test		No lamination and no cracking
9	Laminating Wall Tensile Strength / N	300 ≤ DN/ID ≤ 500	≥ 600
10		600 ≤ DN/ID ≤ 800	≥ 840
11		900 ≤ DN/ID ≤ 1200	≥ 1020
12		1300 ≤ DN/ID ≤ 2000	≥ 1460
13		2200 ≤ DN/ID ≤ 2600	≥ 1600
14	Creep Ratio		≤ 2

Dimensions

Serial Number	Nominal Inner Diameter DN/ID	Minimum Average Inner Diameter dim.min	Minimum Inner Layer Thickness e1.min	Minimum Laminated Wall Thickness emin	Maximum Pitch pmax	Minimum Steel Belt Thickness tmin	Minimum Anti-corrosion Layer Thickness e2.min
1	300	294	2.5	4.0	75	0.4	2.2
2	400	392	3.0	4.5	85	0.4	2.2
3	500	490	3.5	5.0	100	0.5	2.5
4	600	588	4.0	6.0	110	0.5	2.5
5	700	685	4.0	6.0	115	0.5	2.5
6	800	785	4.5	7.5	120	0.7	3.0
7	900	885	5.0	7.5	135	0.7	3.0
8	1000	985	5.0	8.0	150	0.7	3.0
9	1100	1085	5.0	8.0	165	0.7	3.0
10	1200	1185	5.0	8.0	180	0.7	3.0
11	1300	1285	5.0	8.0	210	1.0	3.0
12	1400	1385	5.0	8.0	210	1.0	3.0
13	1500	1485	5.0	8.0	220	1.0	3.0
14	1600	1585	5.0	9.0	230	1.0	3.5
15	1800	1785	5.0	9.0	230	1.0	3.5
16	2000	1985	6.0	9.0	235	1.0	3.5
17	2200	2185	6.0	9.0	235	1.2	3.5
18	2400	2385	6.0	10.0	235	1.2	3.5
19	2600	2585	6.5	10.0	240	1.2	3.5
